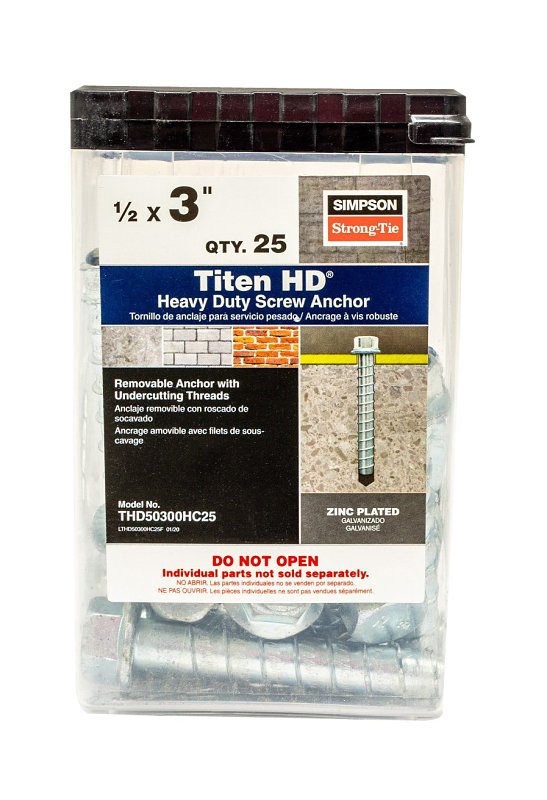

Simpson Strong-Tie Titen HD THD50300HC25 Heavy-Duty Screw Anchor, 1/2 in Dia, 3 in L, Carbon Steel, Zinc Plated

Simpson Strong-Tie

Color: Silver
Diameter: 1/2 in
Drill Size: 1/2 in
Drive Type: 6-Lobe
Finish: Zinc Plated
Model #: THD50300HC25
UPC #: 707392013310
SKU: 7970346

Your shopping list will be used for pickup in-store

Product Details

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.

Key Features

Qualified for static and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
Hex washer head requires no separate washer and provides a clean installed appearance
Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
Zinc plated carbon steel anchor can be used for temporary exterior applications
Caution: Use a Titen HD screw anchor one time only â€” installing the anchor multiple times may result in excessive thread wear and reduce load capacity

Item Specifications

Color	Silver
Diameter	1/2 in
Drill Size	1/2 in
Drive Type	6-Lobe
Finish	Zinc Plated
Head Type	Hex
Length	3

Material	Carbon Steel
Minimum Concrete Thickness	5 to 6-1/4 in
Minimum Embedment Depth	3-1/2 in
Shear Strength	4790 lb
Tensile Strength	110000 psi
Thread Length	2-1/2 in

MORE DETAILS:

Simpson%20Strong-Tie%202024%20Catalog.pdf
Application: For cracked and uncracked concrete and masonry applications
Warranty: Limited
